Obscape HQ Time-lapse Camera F12MP (standard lens)
Wireless, solar powered camera with a 12.3 MP sensor that takes images at fixed intervals and sends them to the Data Portal. Made for long-term monitoring of slowly changing processes.
- 12.3 MP resolution
- Capture modes: snapshot, image burst, video-lapse, time-exposure
- Intervals 10 to 60 min
- Wireless and solar powered, 3 W
- Images in the Data Portal, stored for 2 years
- 32 GB on-board memory
Prices are given in the quote we send you.

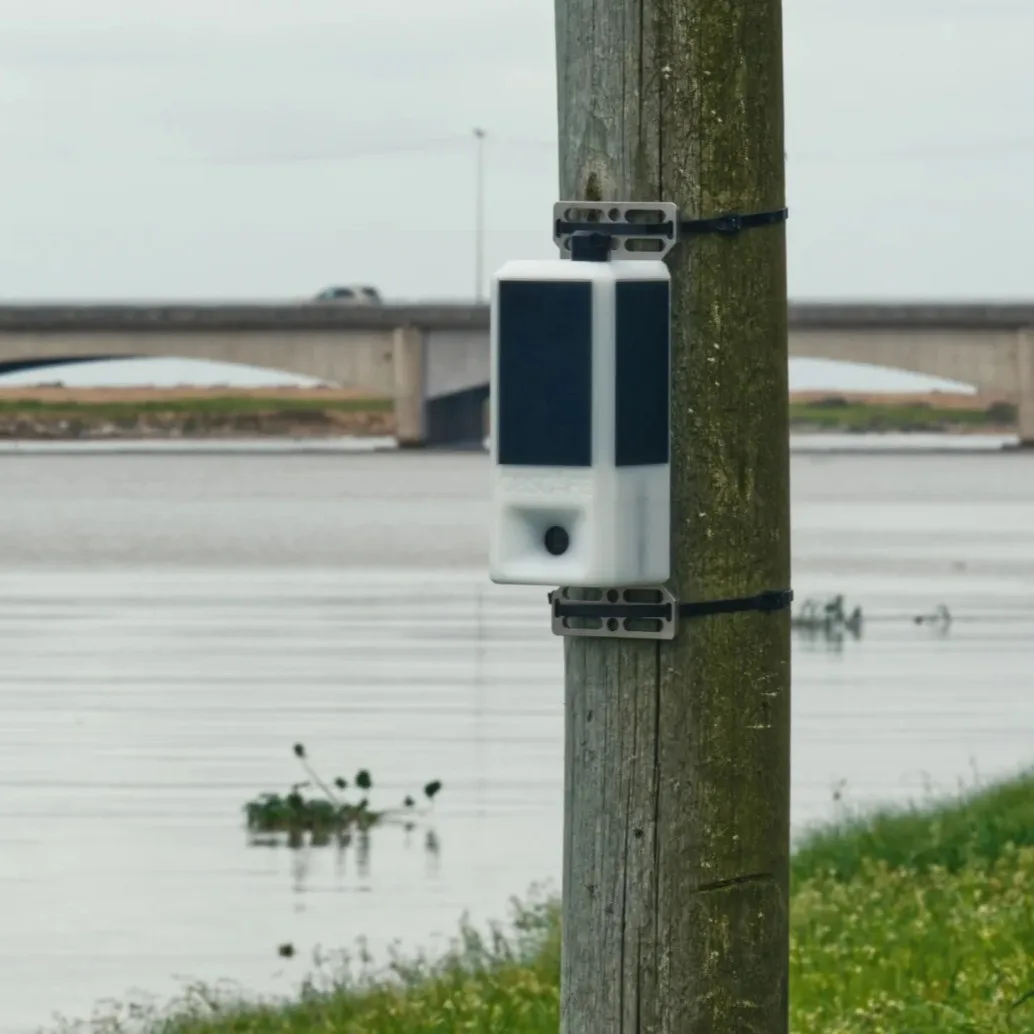

The Obscape F12MP camera has a 12 megapixel sensor and a high-quality lens and is designed for long-term observation of slowly evolving processes such as beaches, river channels or construction work. It is wireless and solar powered, so it is easy to deploy.
Intervals and settings are set in the Data Portal, where the images can be downloaded as MP4 video. The camera also takes image bursts and video-lapses. A downward-looking D12MP version exists, for example for counting litter on the water surface.
- 12.3 MP resolution
- Capture modes: snapshot, image burst, video-lapse, time-exposure
- Intervals 10 to 60 min
- Wireless and solar powered, 3 W
- Images in the Data Portal, stored for 2 years
- 32 GB on-board memory
- Resolution
- 12.3 MP
- View angle
- 66 to 102°
- Focus distance
- 5 cm to infinity
- Time-lapse interval
- 10 to 60 min
- Burst
- 1 to 10 images, 0.25 to 10 fps
- Formats
- JPEG, AVI, MP4
- Memory
- 32 GB
- Dimensions
- 195 x 87 x 87 mm
- Weight
- 2 kg
- Power
- Built-in 3 W solar panel, 18650 Li-ion battery 3.7 V
- Data transfer
- 4G cellular with 2G fallback
- Ingress protection
- IP68
Source: the manufacturer's specification.
