Tecnos
Tecnos OxyCam
Underwater camera for cages and tanks that connects to OxyBuoy: video and water readings go together to the FishControl portal.
- Can be submerged to 50 m
- Video at set times or in real time
- Connects to OxyBuoy, solar powered with battery
- Video and readings together in FishControl
- 1280 x 720, H.264/MJPEG
- Low power, 3 W max
Prices are given in the quote we send you.
OxyCam is an underwater camera for watching fish in cages and tanks. It can be submerged to 50 m and delivers high resolution video.
The camera connects to an OxyBuoy monitoring station set up to handle the video stream. Video is captured at set times and sent together with the probe data to a cloud database, where it is viewed in the FishControl portal. Fish behaviour can then be related to readings such as oxygen, temperature and current. On a command from the web, OxyCam can also stream continuously in real time.

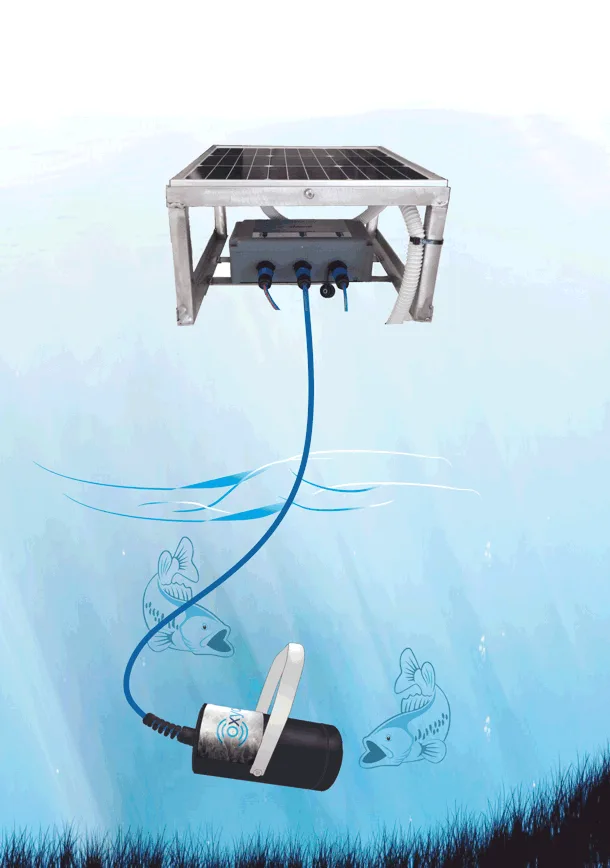

The system consists of the camera with cable, water quality probes, a GSM modem for data transfer, a battery and solar panel, and the electronics in a fibreglass cabinet rated IP65.
- Can be submerged to 50 m
- Video at set times or in real time
- Connects to OxyBuoy, solar powered with battery
- Video and readings together in FishControl
- 1280 x 720, H.264/MJPEG
- Low power, 3 W max
- Depth rating
- Up to 50 m
- Image sensor
- 1/4 inch progressive scan CMOS
- Lens
- 3.2 mm, f/2.0, 67.3°
- Minimum illumination
- 0.028 lux at f/2.0
- Resolution
- 1280 x 720, 30 fps
- Video compression
- H.264/MJPEG
- Wide dynamic range
- 100 dB
- Interface
- RJ-45 Ethernet, 10/100 Mbit/s
- Power supply
- 12 V DC ±10%
- Power consumption
- 3 W max
- Operating temperature
- -30 to 60 °C
- Electrical cabinet
- Fibreglass, IP65
Source: the manufacturer's specification.
