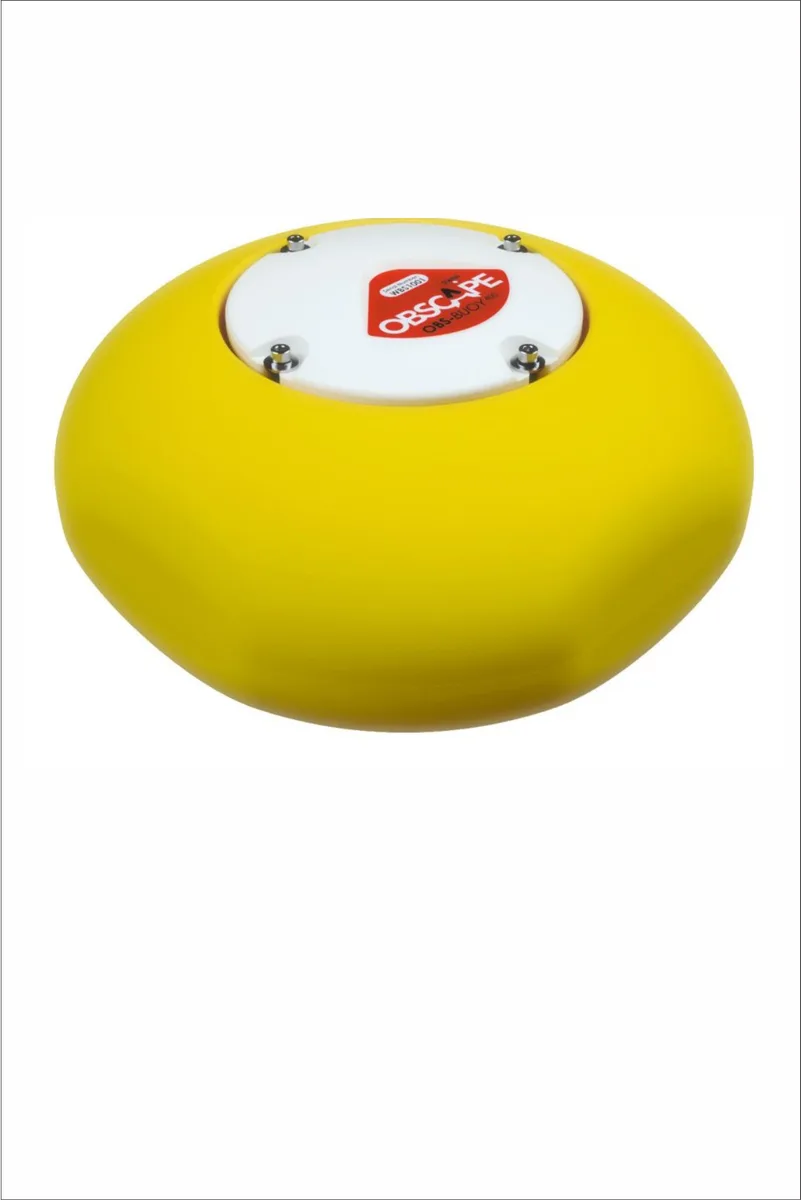

Obscape OBS-BUOY 400 wave buoy with Global SIM (excl. mooring)
Lightweight battery powered wave buoy that measures wave height, period, direction and sea surface temperature and sends the data over cellular to the Data Portal. Global SIM included, mooring not.
- Directional wave spectrum and sea surface temperature
- Battery powered, suits low-sun sites
- 400 mm diameter, 6.5 kg without batteries
- Switch on, put in the water, start logging
- Global SIM included
- Data in the Obscape Data Portal with no subscription
Prices are given in the quote we send you.
OBS-BUOY 400 is a light, simple wave buoy: switch it on, put it in the water and it starts logging. Motion sensors and an electronic compass measure the directional wave spectrum and all common bulk wave parameters, plus sea surface temperature.
The buoy runs on replaceable batteries, so it suits sites with little sunlight and cellular coverage. Data goes over cellular to the Data Portal and to an SD card. Biofouling maintenance is every 3 to 6 months.
- Directional wave spectrum and sea surface temperature
- Battery powered, suits low-sun sites
- 400 mm diameter, 6.5 kg without batteries
- Switch on, put in the water, start logging
- Global SIM included
- Data in the Obscape Data Portal with no subscription
- Dimensions
- 400 mm diameter, 225 mm high
- Weight
- 6.5 kg without batteries
- Float volume
- 15.4 l
- Batteries
- 8 x alkaline, 2 to 3 months
- Data transfer
- 4G cellular with 2G fallback
- Data interval
- 30 min to 24 h
- Sample frequency
- 6.25 Hz
- Frequency range
- 0.05 to 1 Hz (20 to 1 s)
- Burst duration
- 30 min
- Wave data
- Significant and max wave height, periods, direction and spreading, swell, directional wave spectrum
- Data storage
- Obscape Data Portal and SD card
Source: the manufacturer's specification.
