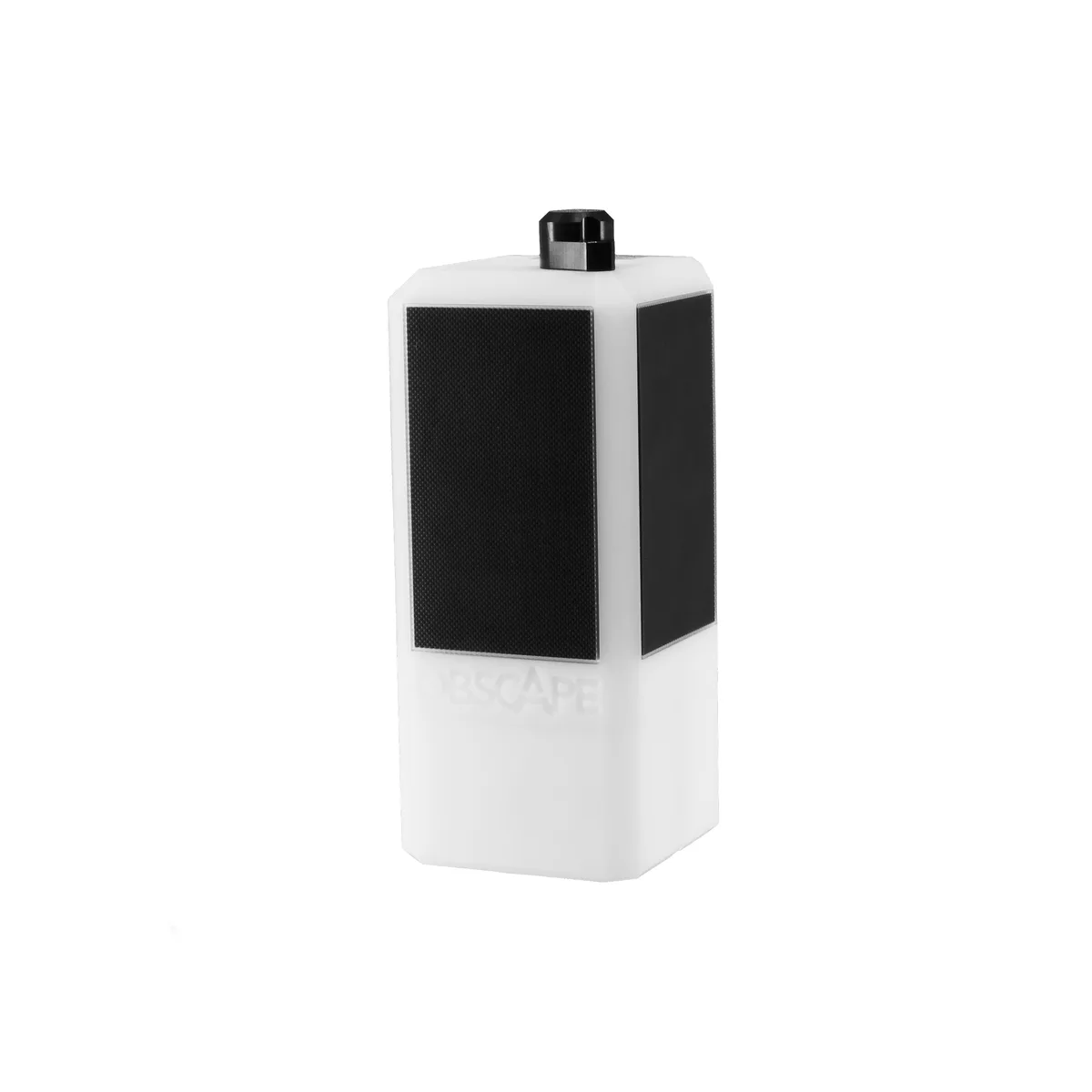

Obscape PTM with interface capability
The PTM (Power and Telemetry Module) is the core of most Obscape devices: solar panel, battery, logger and telemetry in one housing. This version connects a third-party sensor, for example a water quality sonde or an ADCP.
- Connects third-party sensors
- 3 W solar panel
- Data every 5 to 60 min to the Data Portal
- Cellular, satellite optional
- Firmware updated remotely
- Sensor, cabling and extra power not included
Prices are given in the quote we send you.
The PTM is the Obscape power and telemetry unit. It powers the sensor, logs the data and sends it to the Data Portal, and lets you connect sensors from other makers.

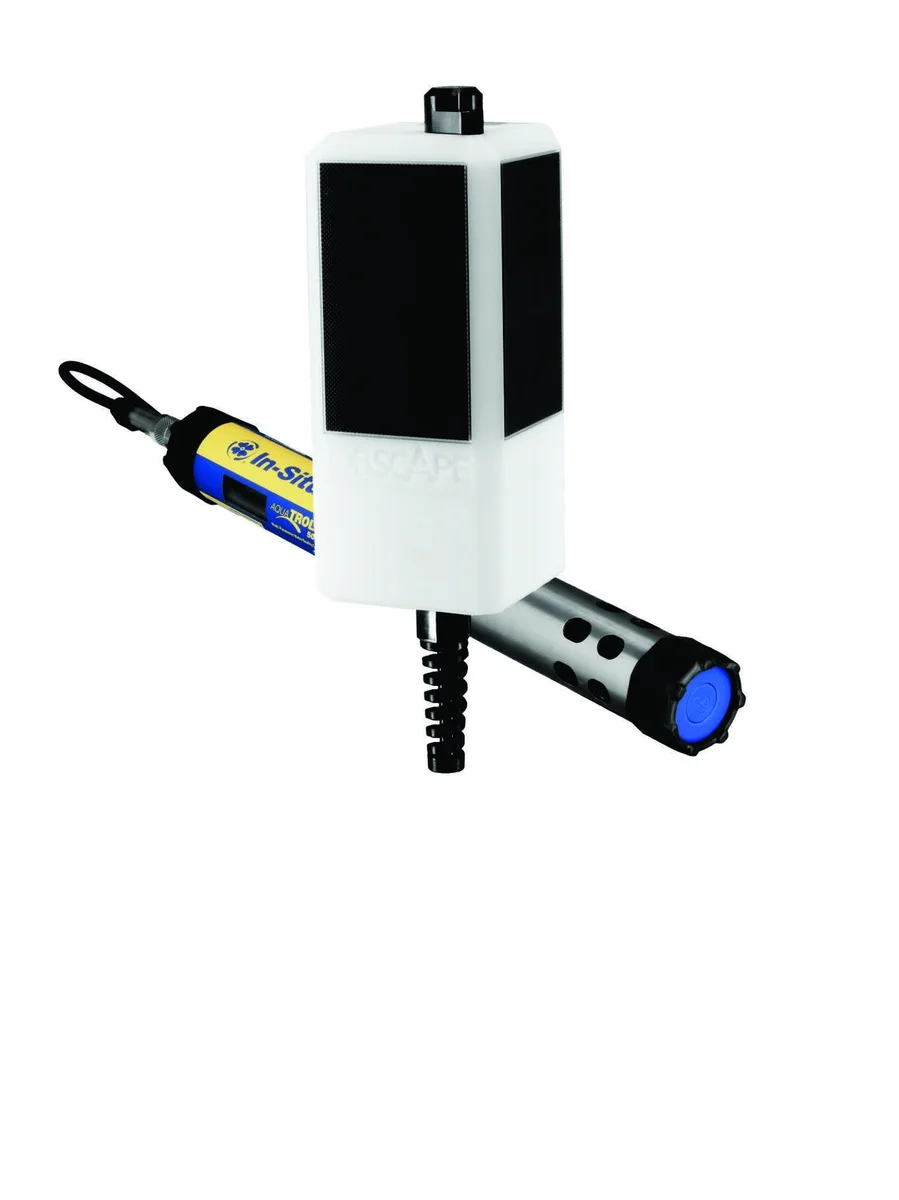

As a water quality station the PTM connects, for example, In-Situ Aqua TROLL, YSI EXO3, NKE WiMo, Aqualabo CTZN, ANB Sensors AQ or Observator Analite NEP5000, and as an ADCP station Nortek current profilers. If a sensor is not listed, Obscape looks at integrating it.
- Connects third-party sensors
- 3 W solar panel
- Data every 5 to 60 min to the Data Portal
- Cellular, satellite optional
- Firmware updated remotely
- Sensor, cabling and extra power not included
- Dimensions
- 195 x 87 x 87 mm
- Weight
- 2 kg
- Power
- Built-in 3 W solar panel, 18650 Li-ion battery 3.7 V
- Data transfer
- 4G cellular with 2G fallback, satellite (Iridium) optional
- Data interval
- 5 to 60 min
- Sensor interfaces
- RS-485, RS-232, SDI-12, analog (water quality station)
- Output power
- 12 V (water quality station)
- Data storage
- Obscape Data Portal and SD card
Source: the manufacturer's specification.
