Obscape

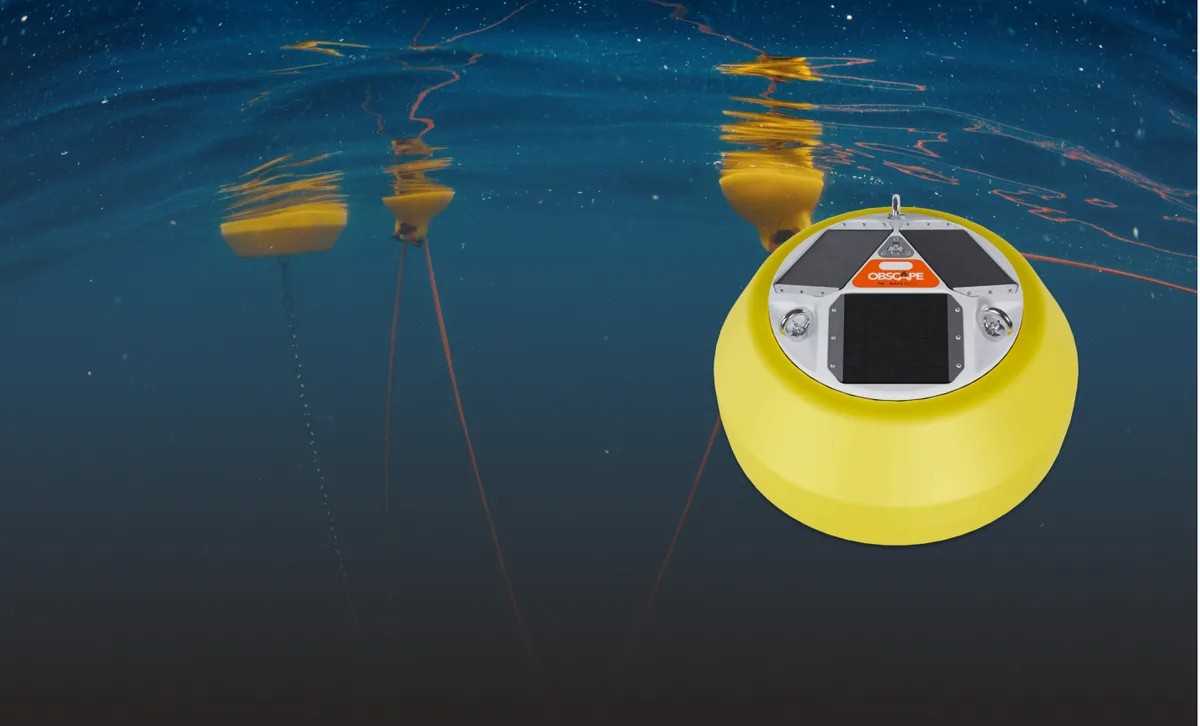

Obscape OBS-BUOY 7 WATT wave buoy with 5000 satellite credits (excl. mooring)
Solar powered wave buoy with a navigation light that measures the directional wave spectrum and sends data over cellular or satellite to the Data Portal. Three months of satellite line rental with 5000 credits included, mooring not.
- 7 W solar panel for long deployments
- Cellular and Iridium satellite
- Directional wave spectrum and all bulk wave parameters
- Navigation light
- Deployed by hand
- Data in the Obscape Data Portal with no subscription
Prices are given in the quote we send you.
OBS-BUOY 7 WATT is the larger Obscape wave buoy. Motion sensors and an electronic compass measure the directional wave spectrum and all bulk wave parameters. A solar panel powers it for long deployments, and it carries a navigation light.
Data goes over cellular or Iridium satellite to the Data Portal, with GPS position and automatic status alerts, and is also kept on an SD card. The buoy is deployed by hand and needs maintenance every 3 to 6 months, depending on fouling at the site.
- 7 W solar panel for long deployments
- Cellular and Iridium satellite
- Directional wave spectrum and all bulk wave parameters
- Navigation light
- Deployed by hand
- Data in the Obscape Data Portal with no subscription
- Dimensions
- 500 mm diameter, 350 mm high
- Weight
- 14 kg
- Float volume
- 34 l
- Mooring eye
- 28 mm inner diameter
- Power
- 7 W solar panel, 18650 Li-ion battery 3.7 V
- Data transfer
- 4G cellular with 2G fallback and Iridium satellite
- Satellite use
- 6 credits per message
- Data interval
- 30 min to 24 h
- Sample frequency
- 6.25 Hz
- Frequency range
- 0.05 to 1 Hz (20 to 1 s)
- Navigation light
- 4 flashes at 2 s intervals, 20 s cycle
- Wave data
- Significant and max wave height, periods, direction and spreading, swell, directional wave spectrum
- Data storage
- Obscape Data Portal and SD card
Source: the manufacturer's specification.
