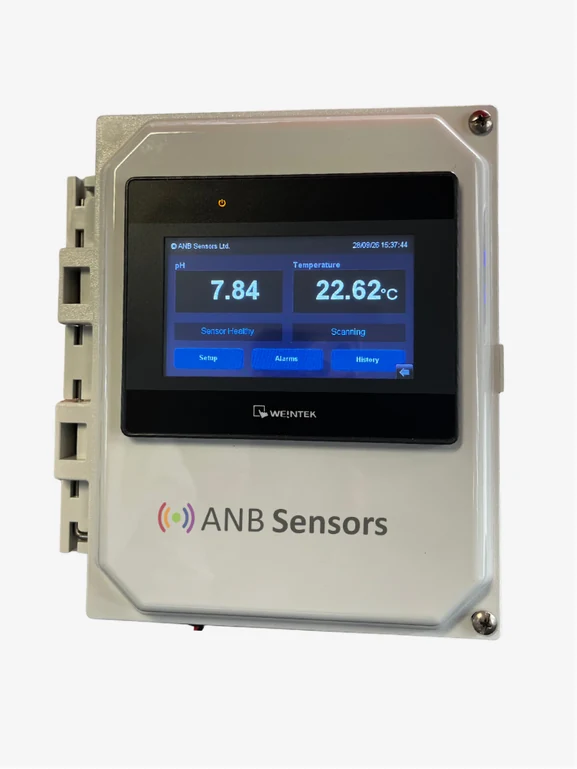

ANB Sensors Controller Transmitter Unit (CTU)
ANB Sensors

ANB Sensors Controller Transmitter Unit (CTU)

Part no.: CTU

Touchscreen and transmitter for AQ2 sensors in plants and tanks. Shows pH and temperature on site and passes the readings to a PLC over 4 to 20 mA, 0 to 5 V or Modbus RTU.

  • Touchscreen for pH and temperature
  • 4 to 20 mA and 0 to 5 V outputs
  • RS-485 with Modbus RTU or Profibus DP
  • Four alarm relays plus one for system faults
  • IP68 enclosure
  • For AQ2 sensors
Request a quote

Prices are given in the quote we send you.

The CTU is a touchscreen controller and transmitter for ANB's AQ2 sensors. It is both a local information terminal and a link to central control, such as the PLC in a fish farm, a water treatment plant or an industrial site.

The unit sits in an IP68 enclosure and runs on 20 to 24 V DC, or 110 to 240 V AC with a supply module. It outputs the readings as 4 to 20 mA or 0 to 5 V and over RS-485 with Modbus RTU or Profibus DP. Four potential-free alarm relays are included, plus one for system faults.

  • Touchscreen for pH and temperature
  • 4 to 20 mA and 0 to 5 V outputs
  • RS-485 with Modbus RTU or Profibus DP
  • Four alarm relays plus one for system faults
  • IP68 enclosure
  • For AQ2 sensors
