AquaLabo
AquaLabo DIGISENS
Part no.: PF-CAP-C-00160
DIGISENS is AquaLabo's range of digital sensors for dissolved oxygen, pH, ORP, conductivity, salinity and turbidity. Every sensor speaks Modbus RS-485 and keeps its own calibration.
AquaLabo

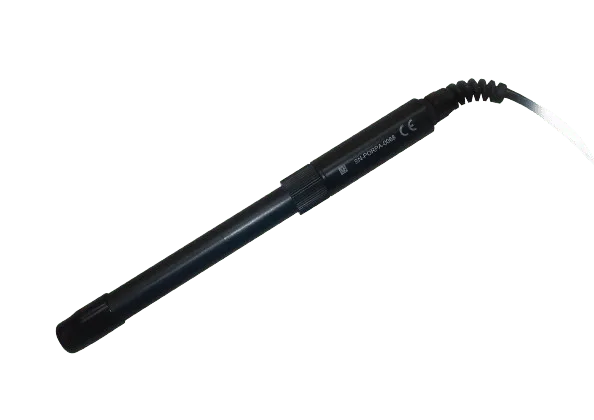

AquaLabo EHAN ORP sensor
Digital ORP sensor with a platinum ring and temperature sensor, for example to follow ozone treatment in recirculating systems.
- ORP and temperature
- Platinum ring on a glass rod
- PLASTOGEL reference that does not clog
- Replaceable cartridge
- Modbus RS-485 and SDI-12
Prices are given in the quote we send you.
The EHAN sensor from the DIGISENS range measures redox potential (ORP) and temperature. The measuring electrode is a platinum ring on a glass rod, and the reference uses PLASTOGEL electrolyte in direct contact with the water, so it does not clog.
The measuring part is a replaceable cartridge. Calibration, history and user data are stored in the sensor, which connects to transmitters and PLCs over Modbus RS-485 or SDI-12.
- ORP and temperature
- Platinum ring on a glass rod
- PLASTOGEL reference that does not clog
- Replaceable cartridge
- Modbus RS-485 and SDI-12
- ORP range
- -1000 to +1000 mV
- Resolution
- 0.1 mV
- Accuracy
- ±10 mV
- Response time
- < 90 s
- Temperature
- 0 to 50 °C, ±0.5 °C
- Communication
- Modbus RS-485 (standard), SDI-12 (option)
- Power supply
- 5 to 12 V
- Length
- 324 mm with cable gland
- Weight
- 350 g (sensor and cable)
- Material
- PVC, POM-C, platinum, polyurethane
- Maximum pressure
- 5 bar
- Ingress protection
- IP68
Source: the manufacturer's specification.
